An Integration Lab for the Android payments ecosystem: every gateway behind one abstraction, with a live look at what actually happens on each transaction.
The brief
Payments is the hardest integration surface on Android: every gateway ships a different SDK, most of them are Activity-callback-era, the client can lie about the outcome, and the interesting logic (signatures, webhooks, idempotency, recovery) lives on the server. PaymentsLab-KMP runs real payment flows across a 70-gateway catalog behind a single PaymentGateway abstraction, and visualizes them step by step. A Ktor server does the order creation, signature verification and webhook reconciliation a real integration requires. Beyond one-shot pay-in it models five money-movement rails.
What shipped
no public push in the last 20 events
// case study
The problem
Every payment gateway ships a different, mostly Activity-callback-era SDK, and the client can lie about the outcome: the logic that actually decides whether money moved (signatures, webhooks, idempotency, recovery) has to live somewhere the client can't fake it.
The decision

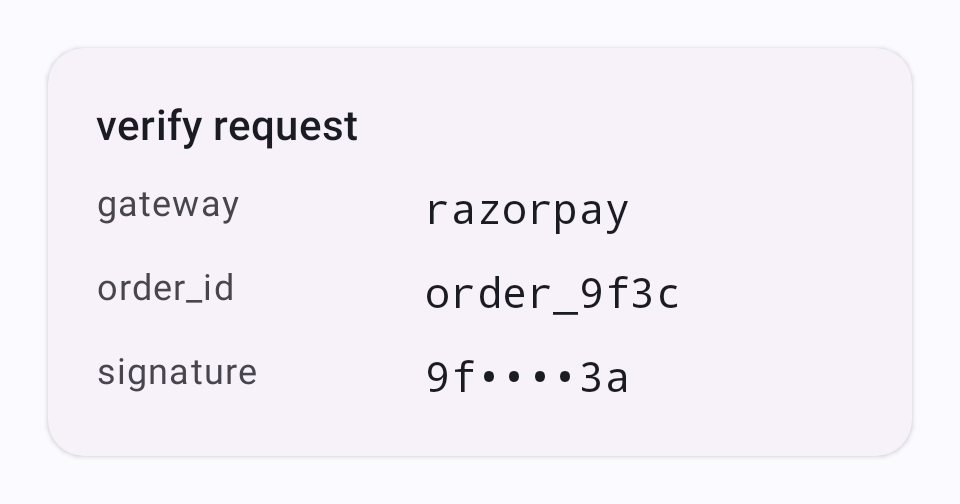

Put a Ktor server between the client and the truth: order creation, signature verification and webhook reconciliation happen there, a Room journal is written before the SDK even launches so a process death mid-payment is always recoverable, and a redaction layer keeps every secret and PII out of logs and screens.
The result

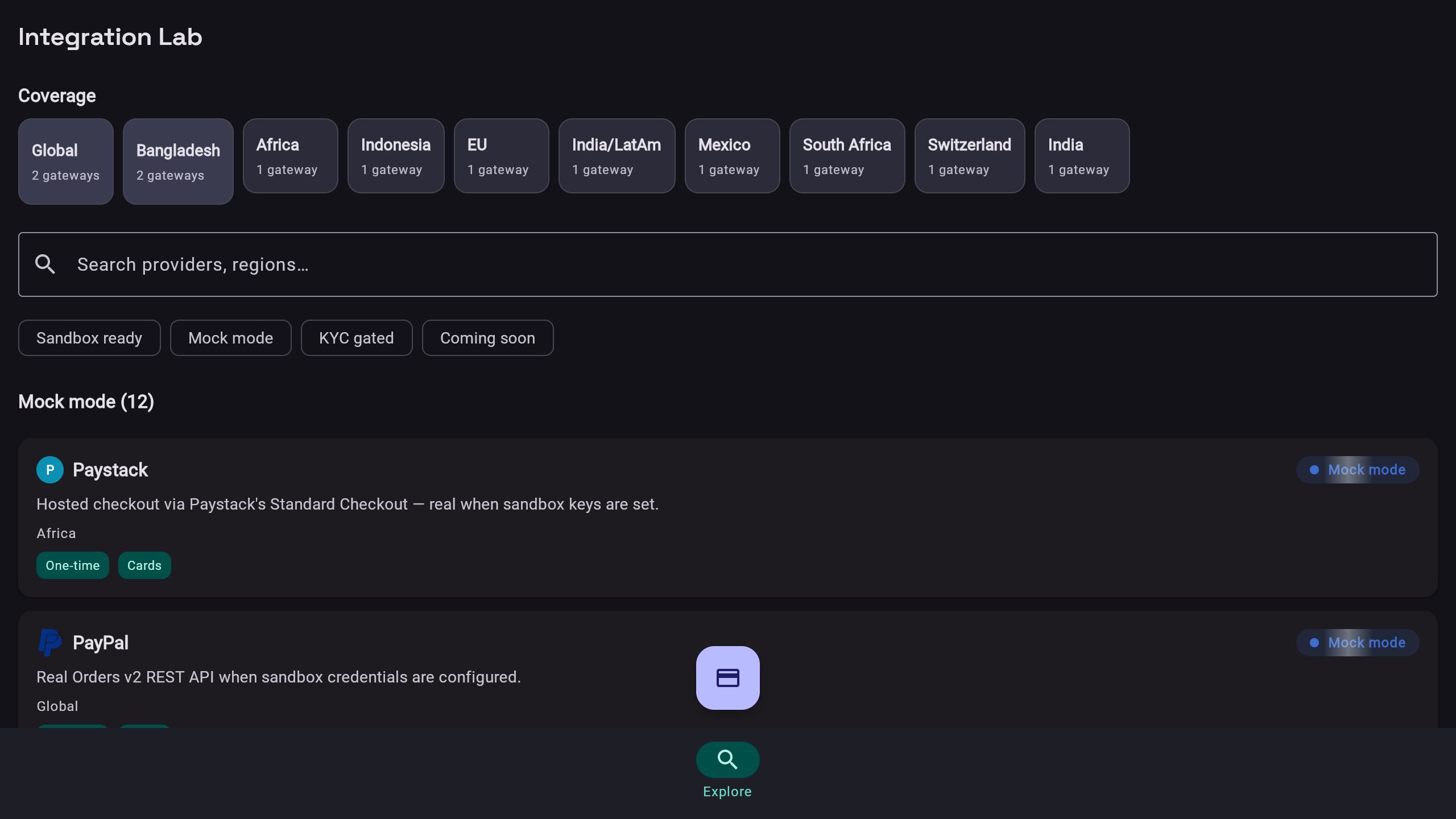

70 cataloged gateways now sit behind one PaymentGateway contract, with a client-side Success read only as a hint until the server confirms it. The same discipline now extends to five money-movement rails beyond one-shot checkout, every one of them MOCK_MODE-honest until real sandbox keys are set.
70 gateways cataloged
Watch the two-minute tour ↓
Analyst view: PaymentsLab-KMP draws on 6 stack entries and links to 4 outside sources, and shares 2 shared foundations with 3 other builds.
// guided tour
A recorded walkthrough of the app with sample content. Tap the speaker for the voiceover, or read the captions. In-app figures describe the recorded demo, not live production activity.
// shipping
Every line below is checkable. Add the repository in an F-Droid client and the app installs, signed with the same key its listing pins.
// pipeline
Read live from GitHub Actions and the F-Droid index. Not a badge: the actual runs, what shipped, and the certificate you can check the download against.
reading the pipeline
48
Gradle modules (17 local + 31 composed)
70
gateways cataloged
5
money-movement rails
1
PaymentGateway contract
// multiplatform

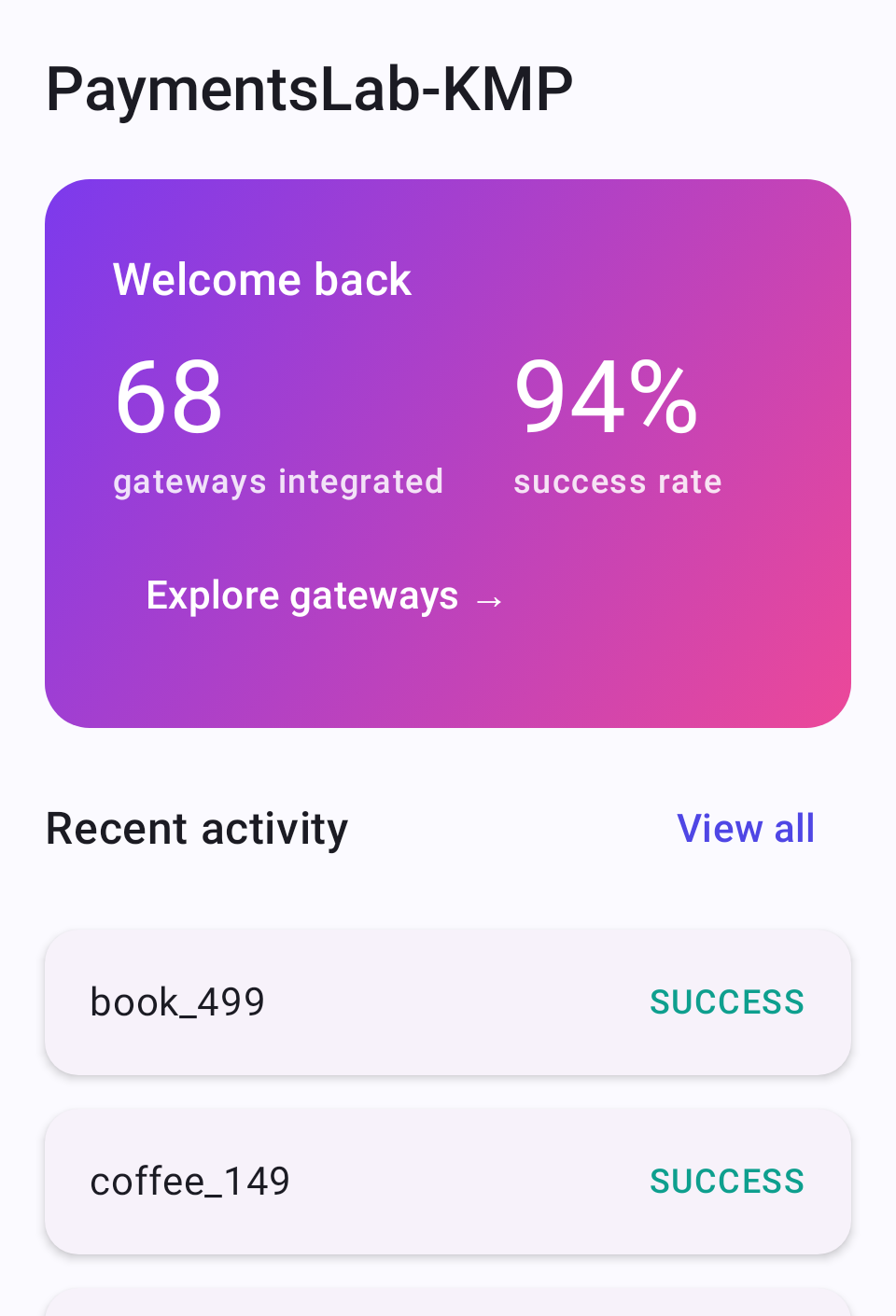

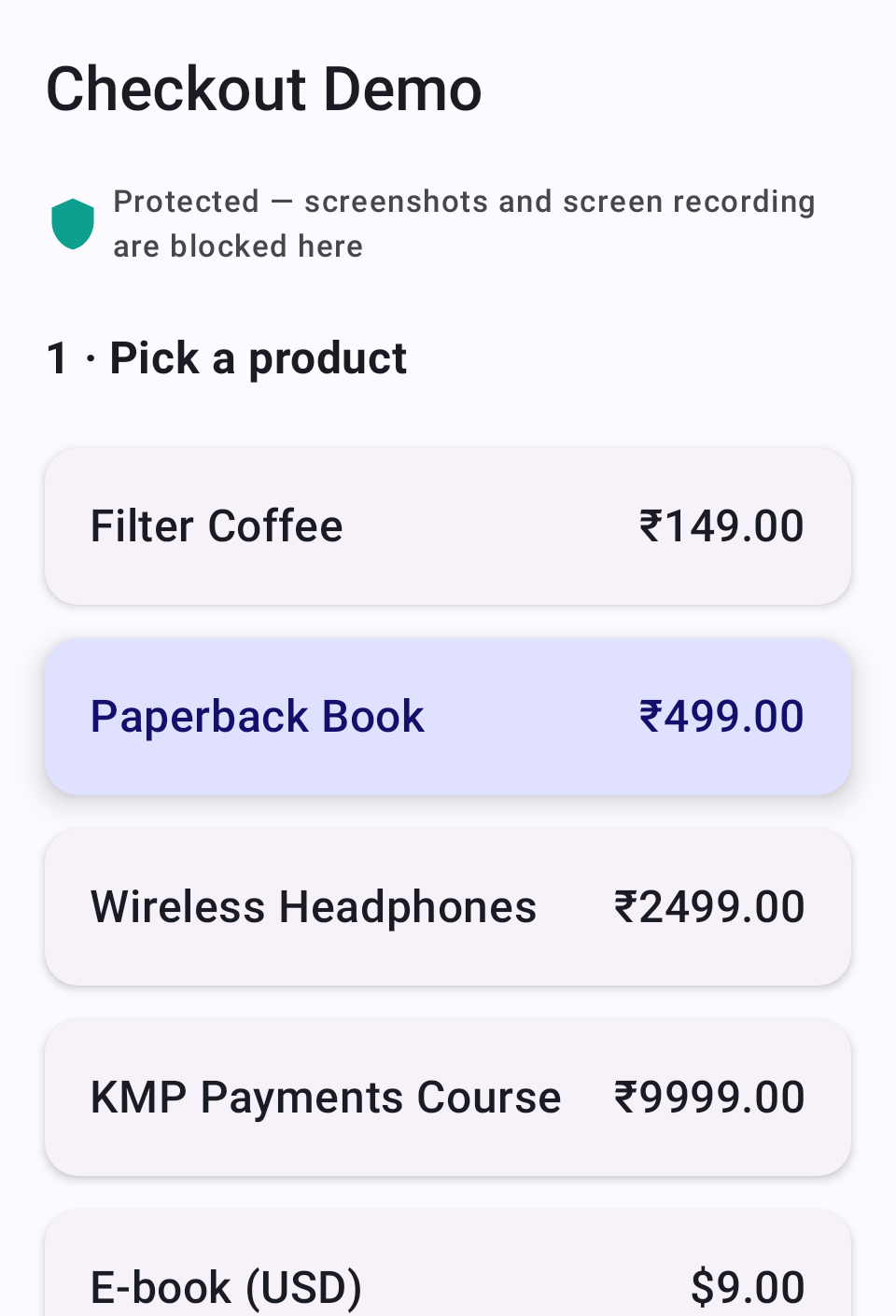

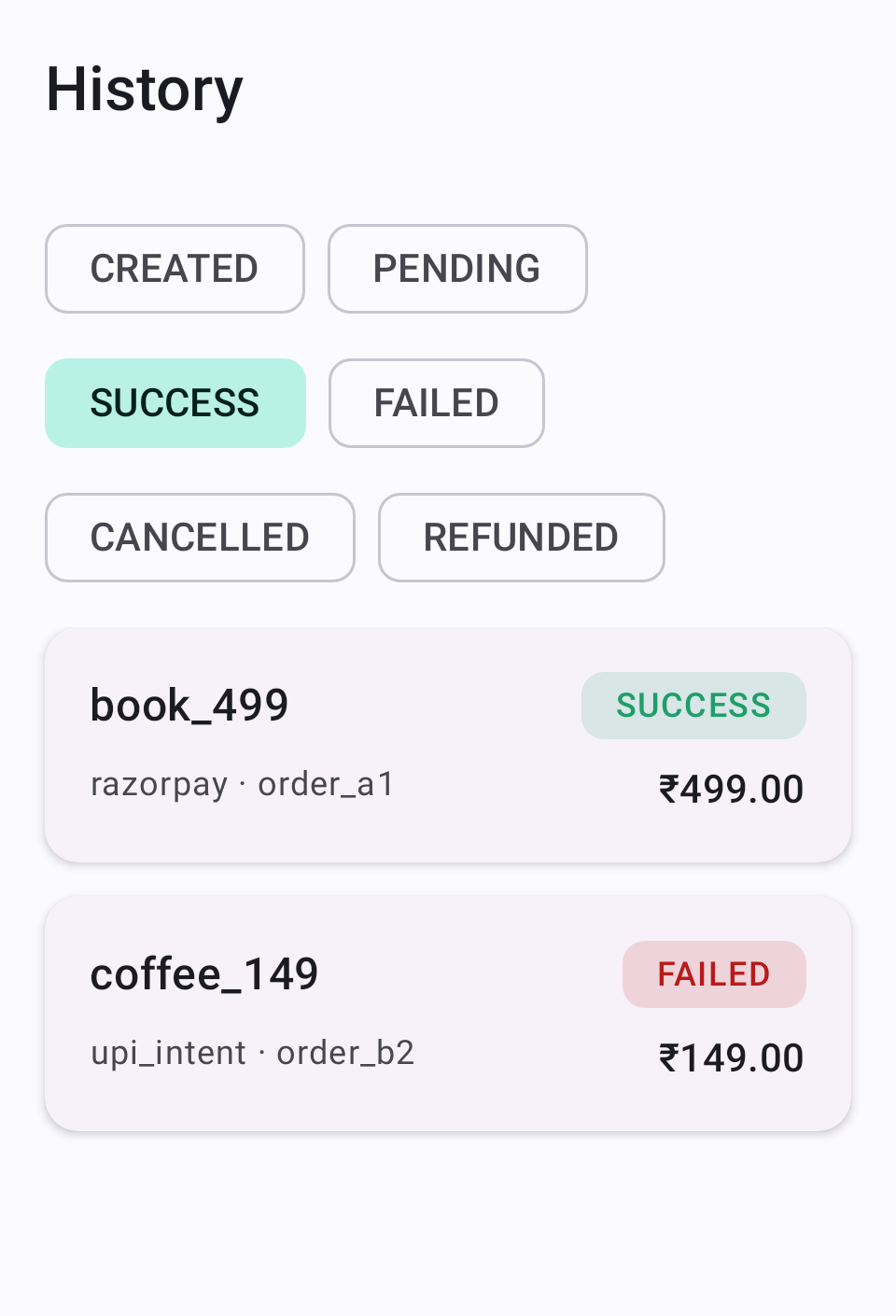

Recorded app screens and, where available, the running build. Sample content inside a screen is separate from the source-linked project metrics.
// design notes

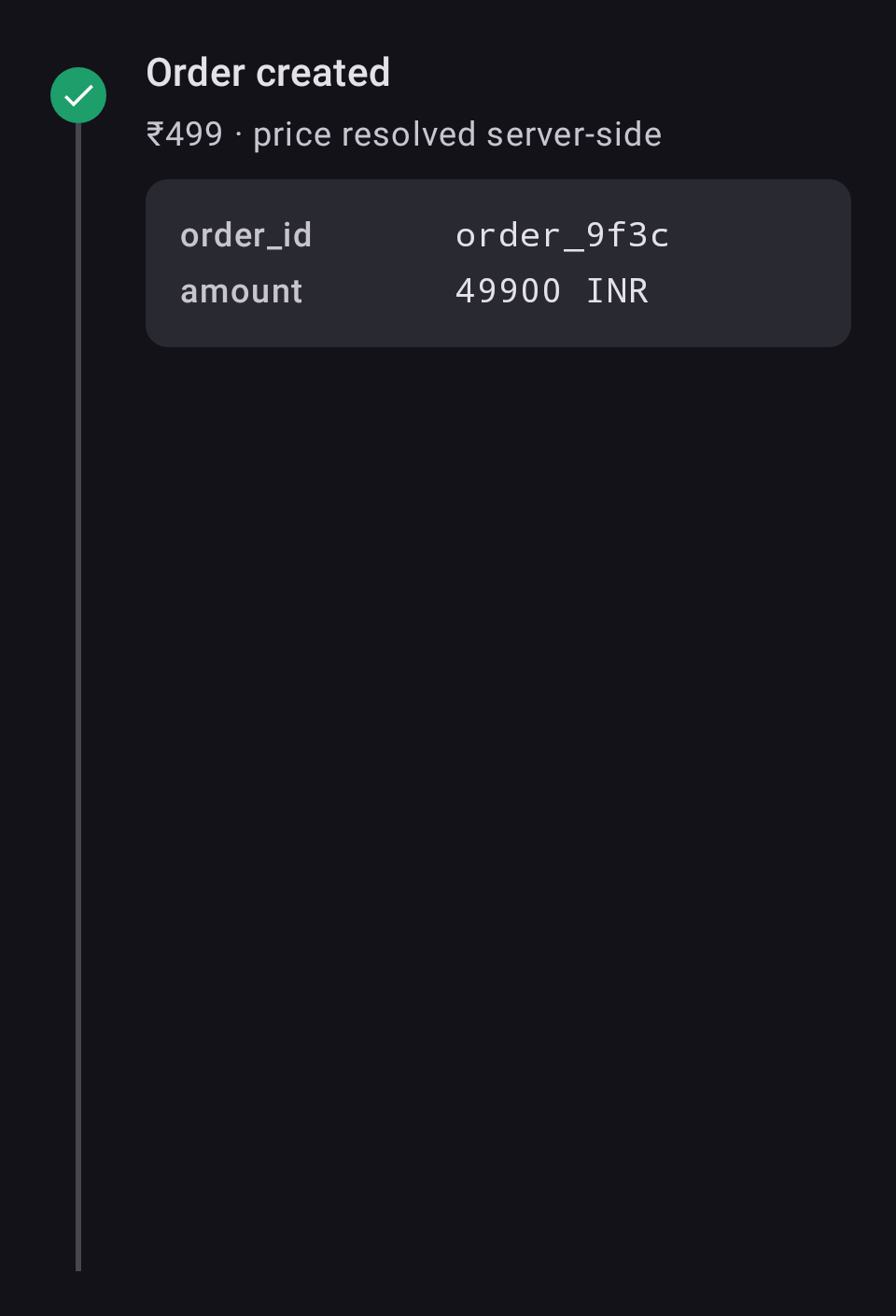

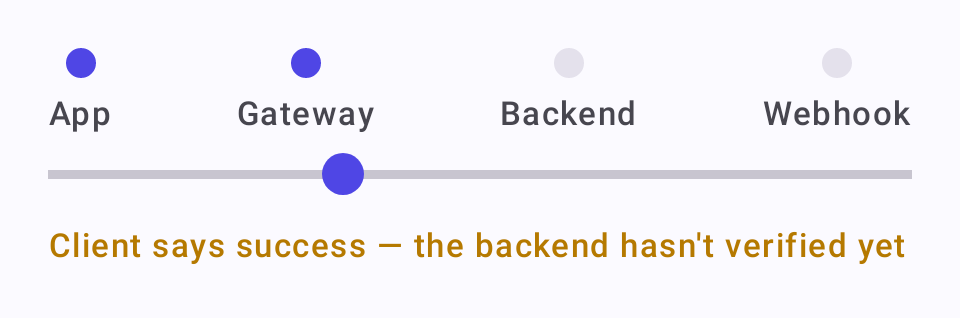

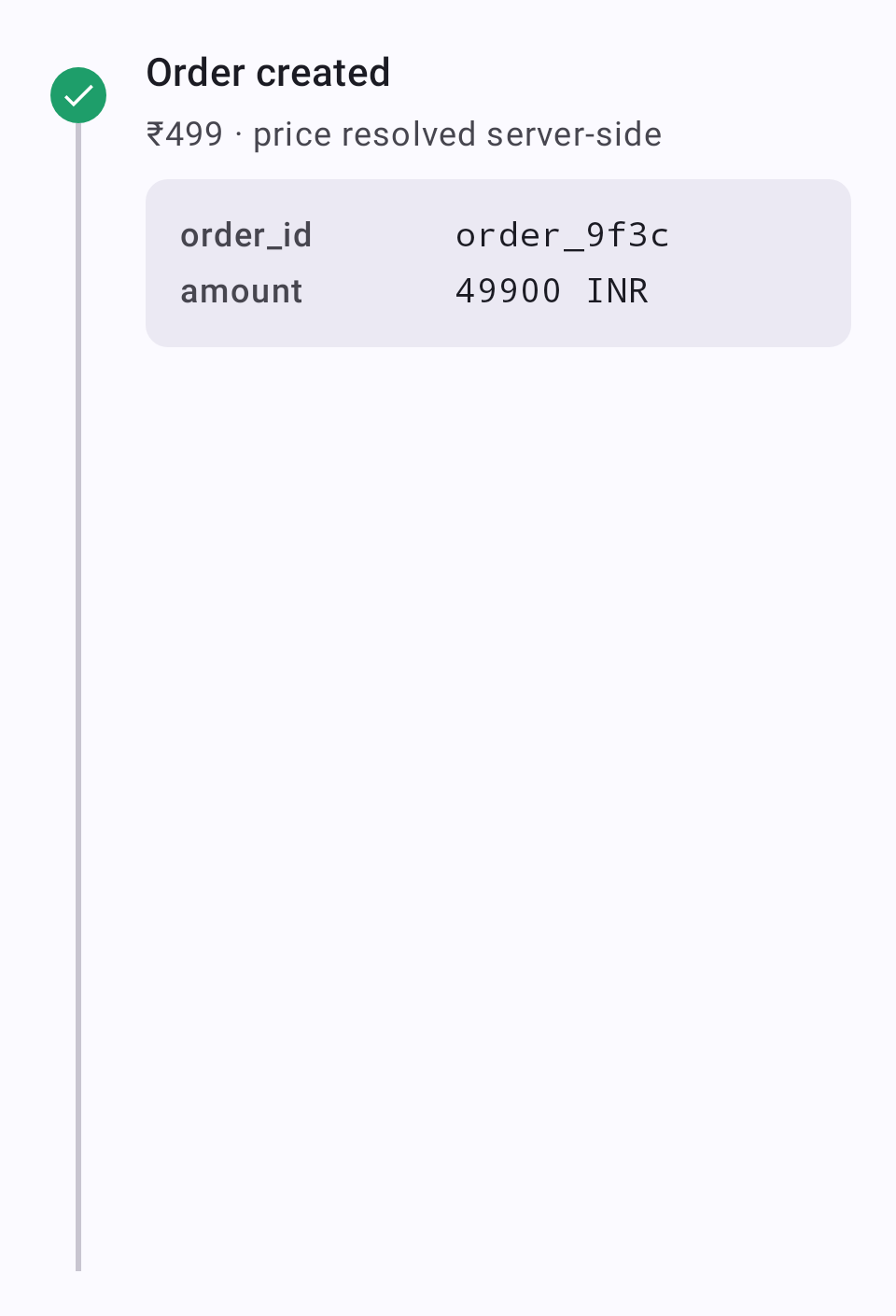

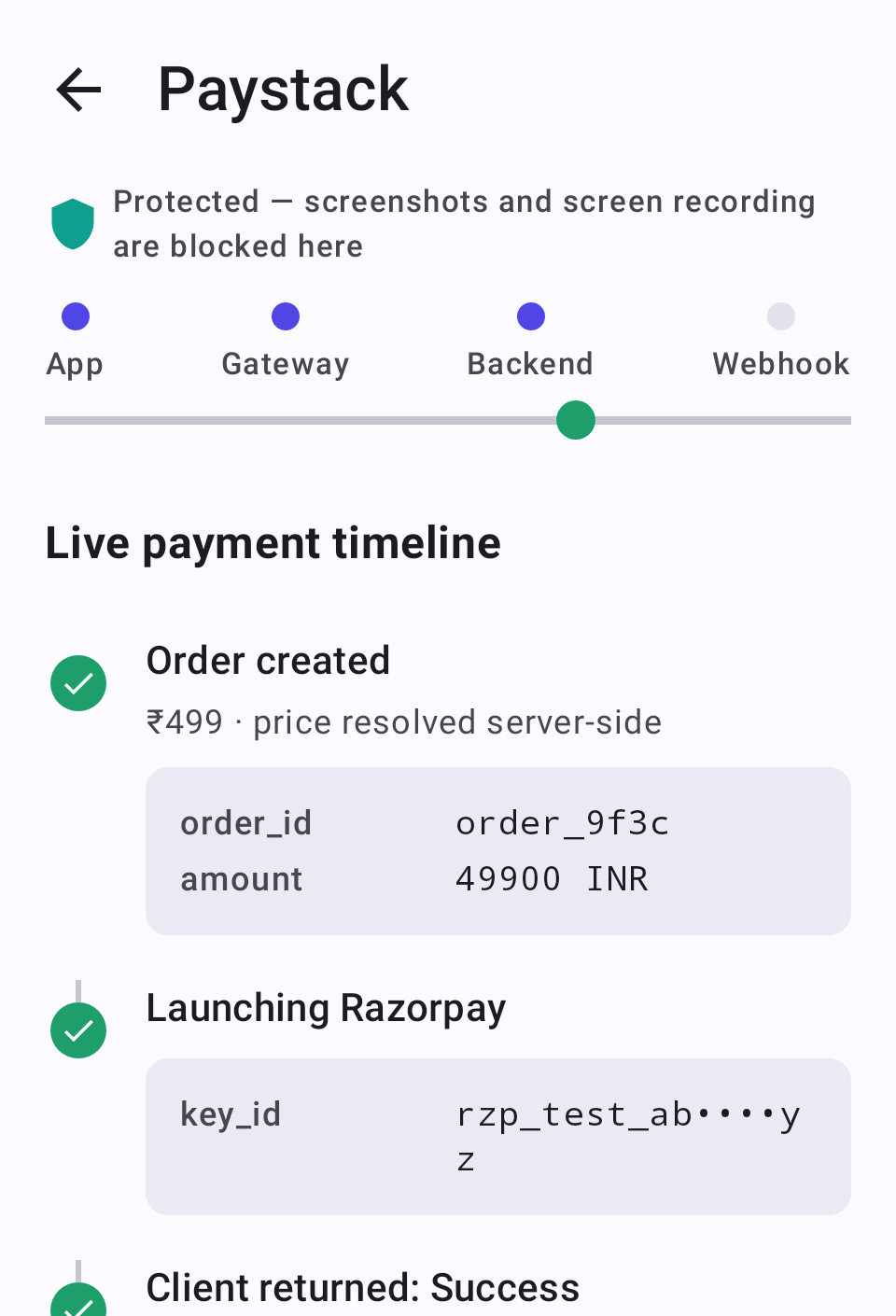

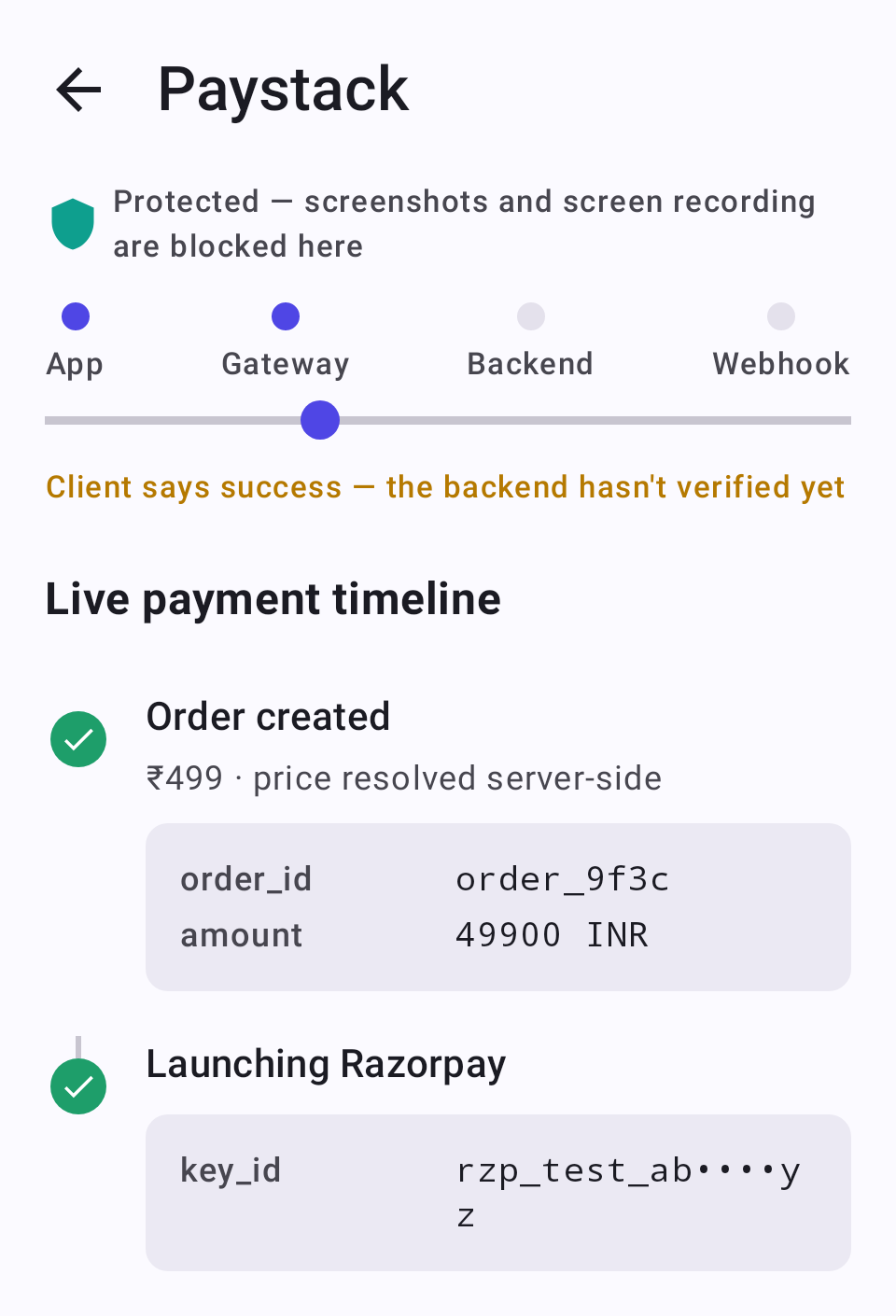

A client-side Success is a hint, never proof. Only the server decides the true state, after signature verification and webhook reconciliation. A server that owns price and truth, a client that always confirms before trusting, a journal written to Room before the SDK launches so a process death mid-payment is always recoverable, and a redaction layer so no secret or PII ever renders or logs.

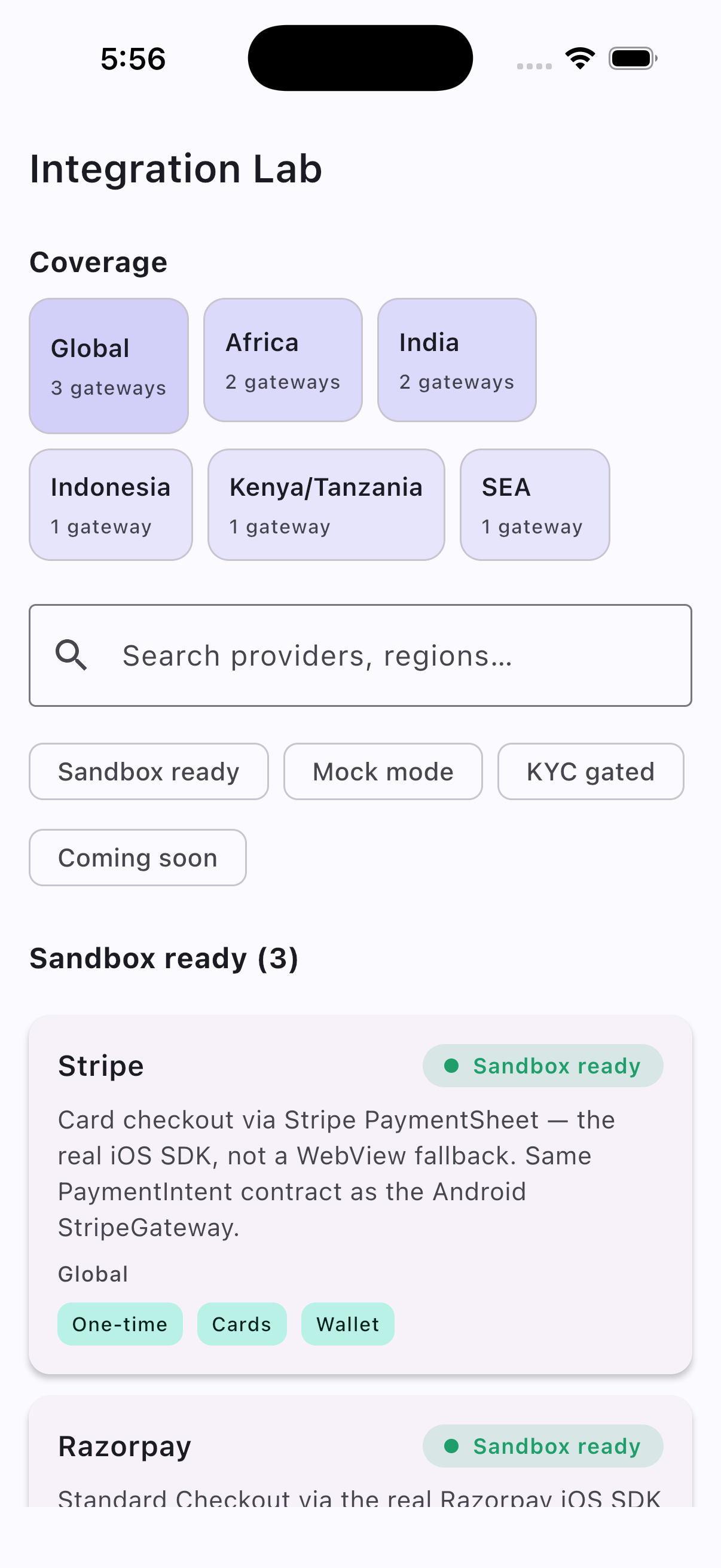

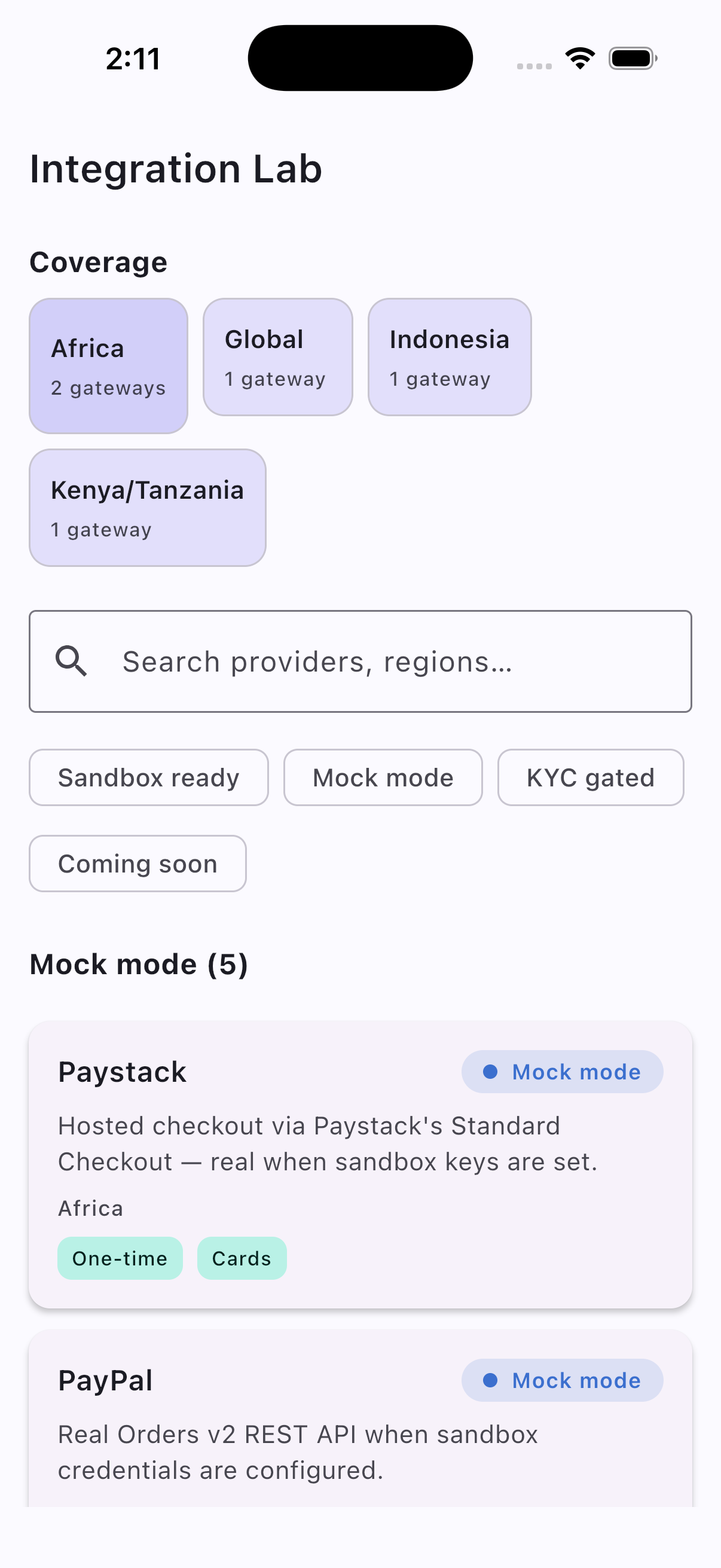

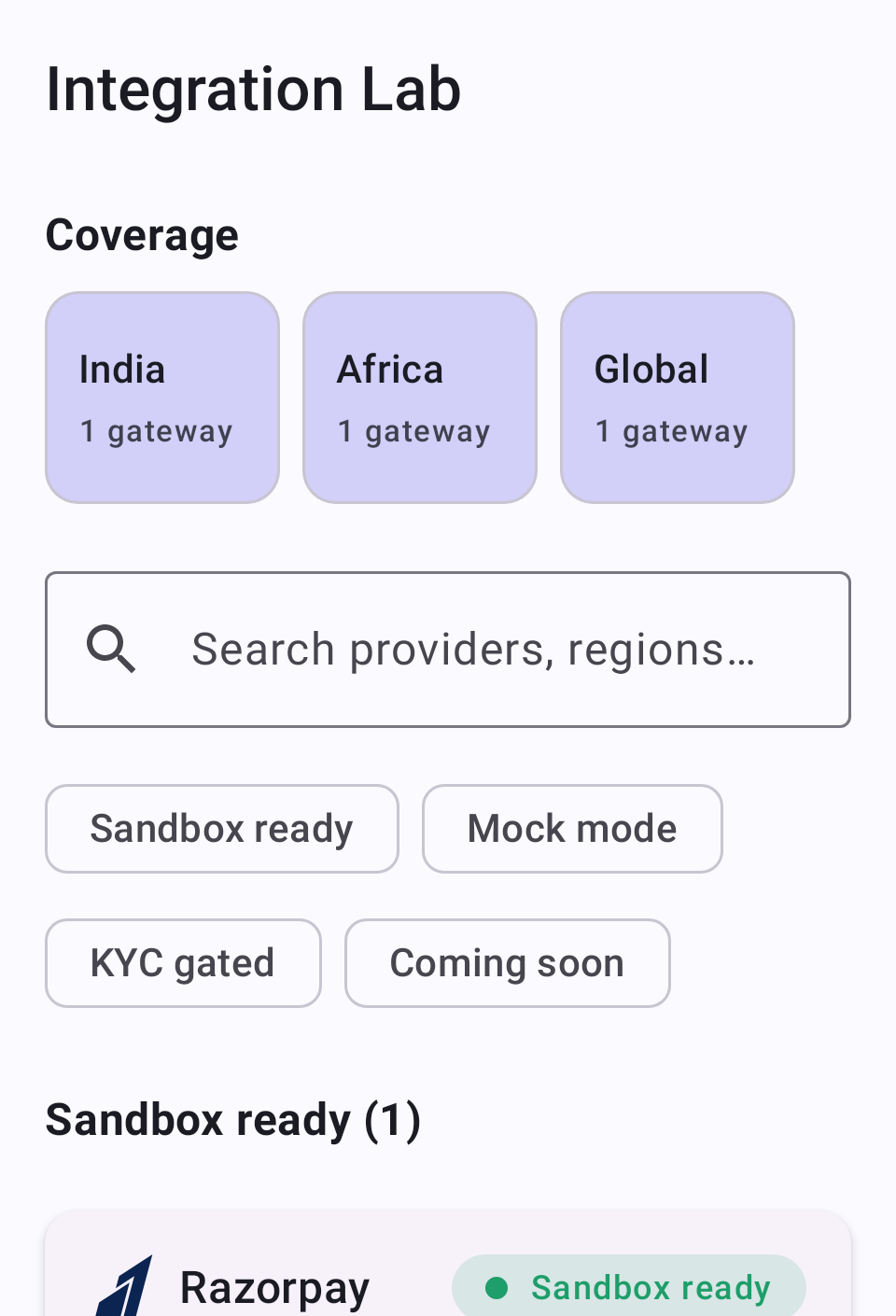

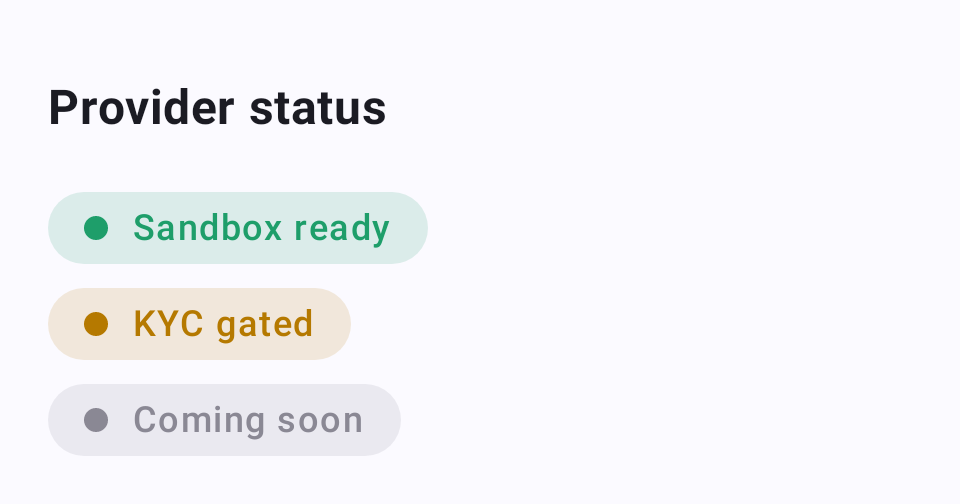

One Gradle module per native-SDK provider is contributed into a registry via Koin's getAll<PaymentGateway>(), so adding gateway N+1 touches no existing code. There are 17 local modules plus 31 composed from kmp-toolkit (19 of kmp-toolkit's 20 standalone provider gateway modules). The in-app catalog spans 70 registered gateways: 15 native-SDK integrations, an internal wallet ledger, 44 hosted-webview gateways behind one archetype, 7 mobile-money flows and 3 catalog-only / KYC-gated entries, each with its own status badge and region.
Beyond one-shot checkout the server models payouts (/payouts: money out to a beneficiary), mandates & subscriptions (/mandates + scheduled debits and cancel), a card vault (/vault: tokenize once, charge later by id), marketplace Connect onboarding (/connect: sub-merchant KYC + split payouts) and an internal double-entry wallet ledger (/wallet: seed / debit / refund against a real running balance), plus split payments, a two-leg orchestration that compensates if one leg fails. Ten provider modules ride these rails (Paystack, Flutterwave, Paytm, Xendit, M-Pesa, Peach, NMI, Stripe Connect, plus wallet and a record-only cash gateway), every one MOCK_MODE-honest until real sandbox keys are set.

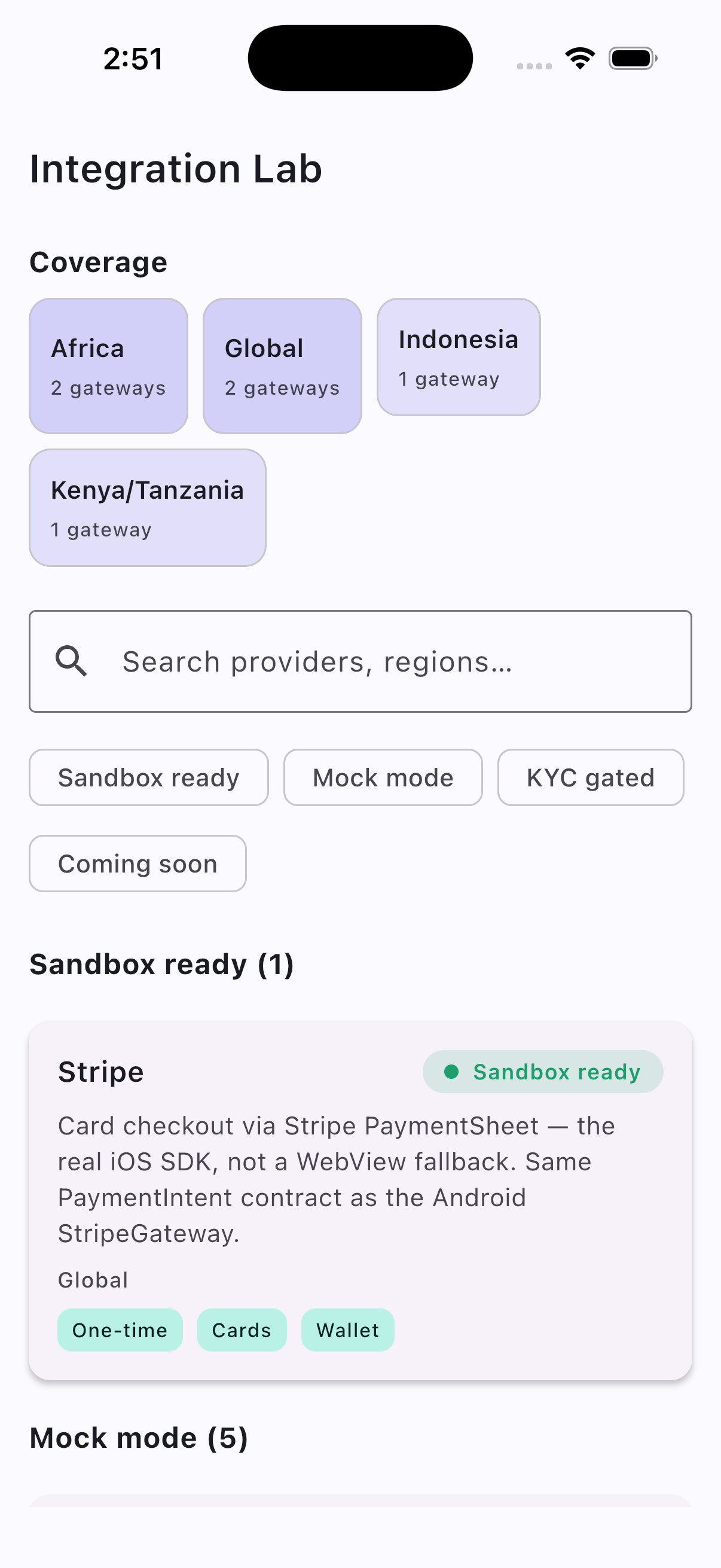

Razorpay, Cashfree, Stripe (+ Google Pay), Square, Omise and a raw UPI intent flow all implement the same tiny PaymentGateway interface. The Activity-callback SDKs are bridged into suspending coroutines by a PaymentHost that never leaks an Activity upward. A generic hosted-webview archetype covers the whole class of gateways with no native SDK behind the same contract. Env-backed credentials auto-degrade from SANDBOX_READY to MOCK_MODE honestly instead of silently pretending to work.
The lifecycle is a pure (State, Event) → Effects reducer, zero coroutines/DI/IO, with the orchestrator just executing its effects. A payment's path is a recorded event log that replays byte-for-byte identically, the auditing property money movement wants. The MVI base comes from my own kmp-toolkit library, shared with other apps.
core:security holds real Android Keystore AES-256-GCM at-rest encryption, FLAG_SECURE + recursive tapjacking protection, device-integrity checks (root, emulator, debugger, Frida/Xposed hook detection, SSL-pinning-bypass detection), and a certificate-pinning config, with detection kept deliberately separate from enforcement policy.
